Haltech - Nexus Plugin ECU + LSU4.9 Wideband Hardware Pack to suit Nissan Skyline R32 / R33 / R34 GT-R
Original price
$3,249.99
-
Original price
$3,249.99
Original price
$3,249.99
$3,249.99
$3,249.99
-
$3,249.99
Current price
$3,249.99
PREORDER ONLY - ETA JULY 2025!
PART NUMBER: HT-231802
ECU OVERVIEW:

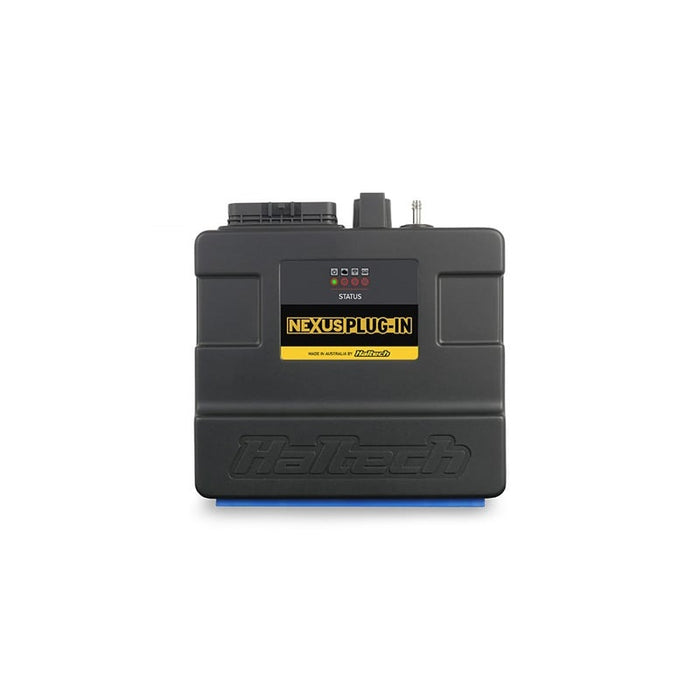

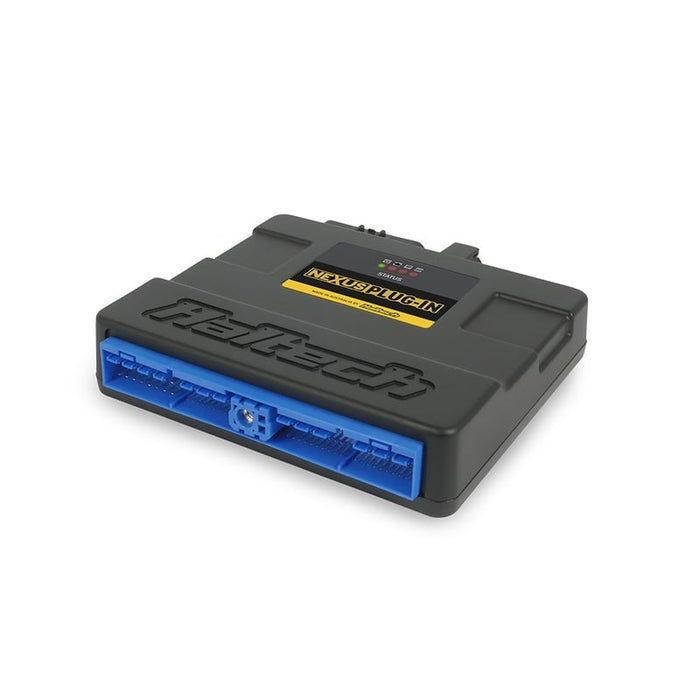

The Haltech Nexus Skyline Plug-in, as the name suggests, plugs directly into the Nissan harness, and nestles neatly into factory location . It seamlessly supports vital OEM functions like the R34 GT-R MFD Injector Duty Cycle display, GT-R ATTESA TPS output.
Unlock enhanced capabilities with "OEM Plus" functionality via the auxiliary connector, enabling features such as O2 Control, Flex Fuel, Oil Pressure monitoring, Fuel Pressure sensing, and Drive by Wire Throttle.
And for serious drivers, the Nexus ECU unleashes potent Race Functionality, including CO2 Boost Control, Race Timer, Advanced Torque Management, Launch Control, Nitrous Control, and 128MB of onboard data logging. Setting up your Skyline has never been easier, thanks to the intuitive setup wizard in NSP software or the Haltech Connect App on your smartphone. Plus, Wi-Fi capability ensures effortless diagnostics and tuning on the go.
Suits: Plug 'n' Play replacement of the factory ECU for Nissan Skyline R32 GTS-T, R32 GT-R, R33 GTS-T, R33 GT-R, R34 GT-R. DOES NOT SUIT R34 GT/GTT (Grey plug ecu harness).

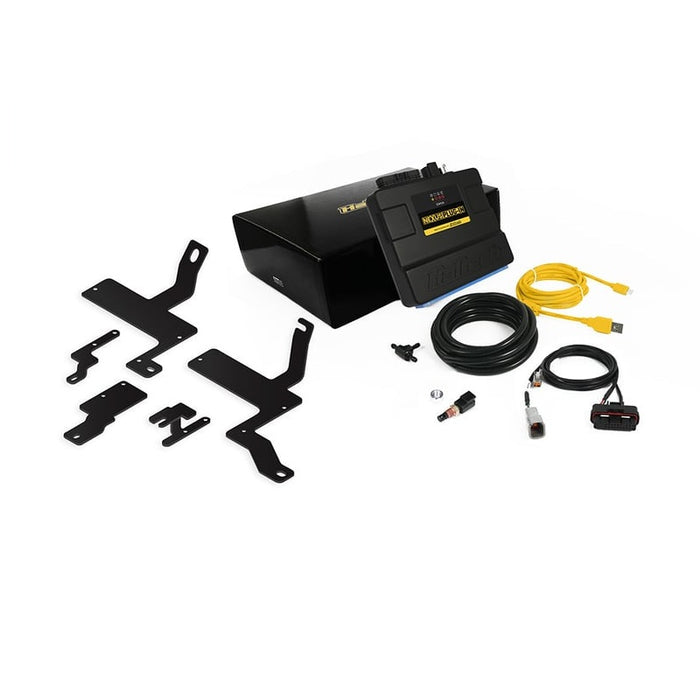

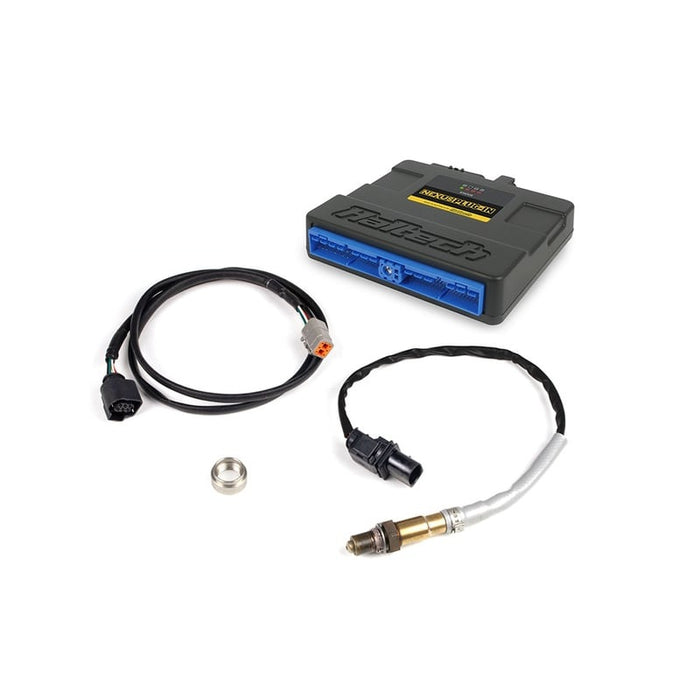

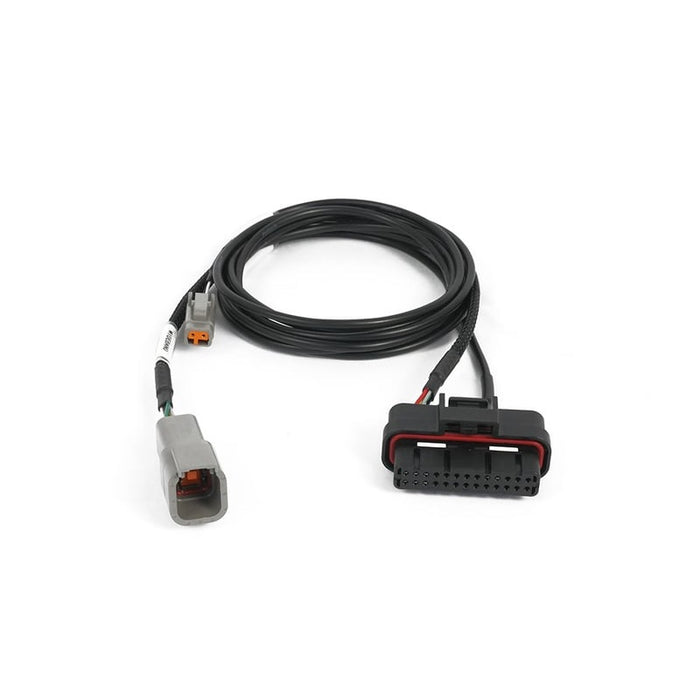

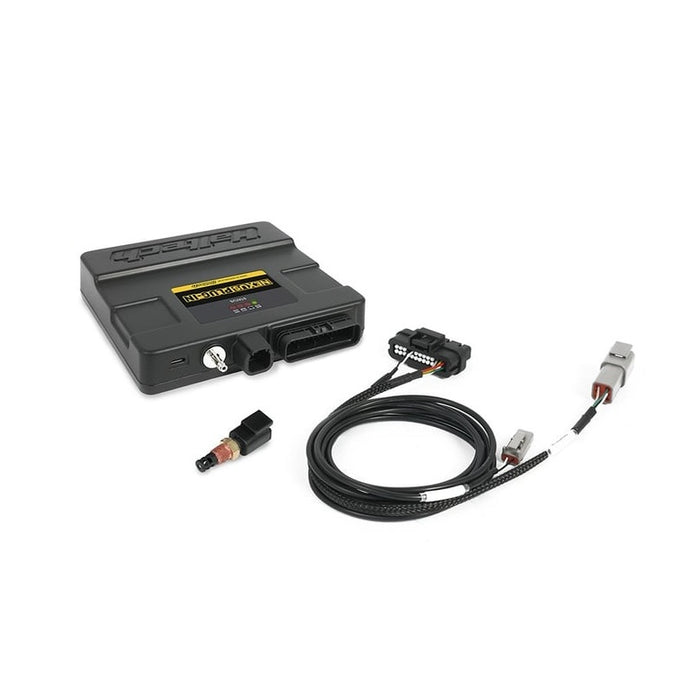

Includes: Nexus Plug-in ECU, Air temperature + Wideband expansion harness 2.5m (8'), Air temperature sensor (1/8” NPT), Mounting hardware ,vacuum hose ,T-piece ,USB cable, LSU 4.9 Sensor, harness and bung, Quick Start Guide,
Notes: Manual transmission only.
NEXUS PLUG-IN ECU FEATURES:
- Drive By Wire Throttle Support
- Single Channel Onboard Wideband Control - Supports LSU4.9/NTK
- Wi-Fi
- 4 channel onboard oscilloscope
- Data logging 128MB
- Flex Fuel
- Closed Loop O2 Control
- Dual Knock Control
- Variable Cam Control
- Long term learning
AUXILIARY CONNECTOR:
- 4 X Digital Pulsed Outputs
- 4 X Synchronized Pulsed Inputs
- 4 X Analogue Voltage Inputs
- 2 X Half Bridge Outputs
- 1 X Onboard Wideband
- 2 X Sensor Ground
- 2 x 12V Output
- 2 x 5V Output
SUPPORTED OEM FUNCTIONALITY:
- Output for ATTESA (GTR)
- Variable speed fuel pump
- Injector duty cycle output (R34 GTR)
- Boost Control
- A/C Output
- Idle Control
- Thermofan
- VCT Switched (N-VCT)
- Check Engine Light
- Fuel Pump Control Module
- Narrowband Sensors
- Vehicle Speed
- Air temperature Sensor (GT-R Only)
