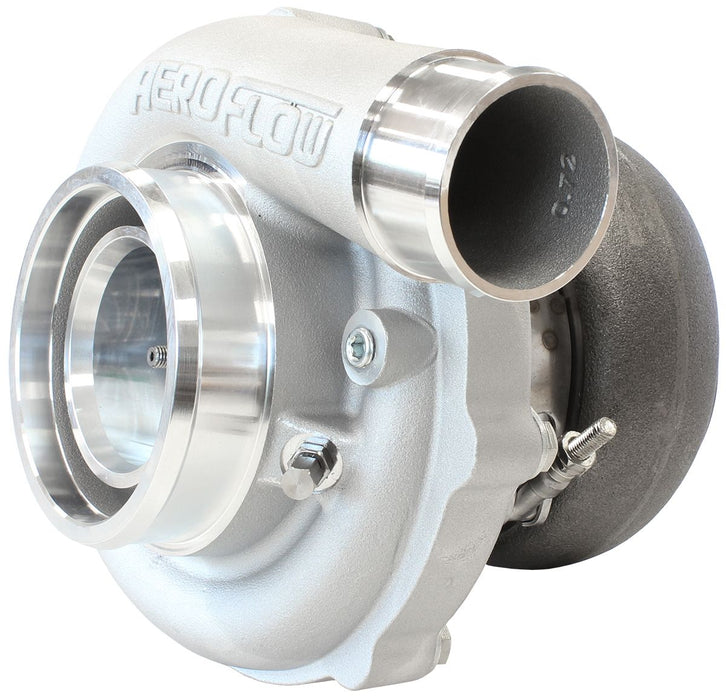

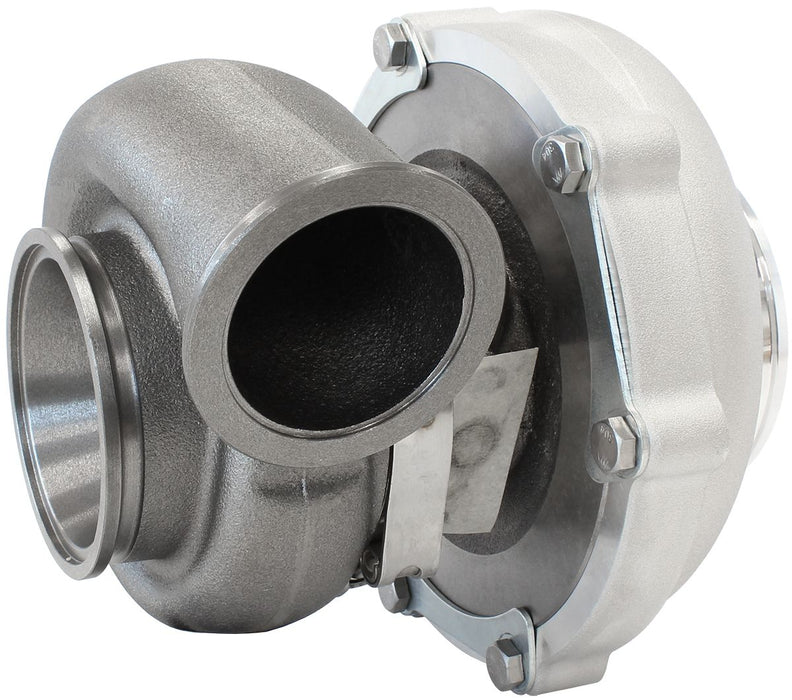

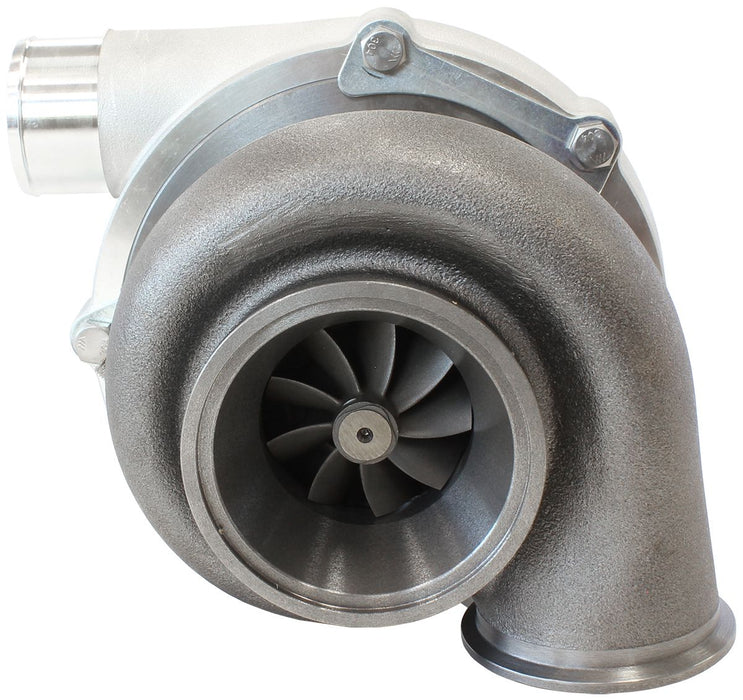

Aeroflow - B5855 Boosted Turbocharger with V-band Flange .83 Rear (G30-770)

**THE ULTIMATE RB25/RB26 STOCK BLOCK TURBOCHARGER FOR 500HP AT THE WHEELS**

BOOSTED B5855 V-Band Turbocharger Specifications ( AF8005-3048 )

Recommended horsepower rating:  475-770HP
Recommended engine displacement:  2.0L to 3.5L

- Dual ceramic ball bearing
- Point Milled 7075 billet compressor wheel
- Ported shroud compressor cover
- Speed sensor port included in compressor cover (Speed sensorsold separately, AF8050-1010)
- 1/8" NPT boost reference port
- External wastegate sold separately
- Turbo drain gasket and -4AN turbo oil feed fitting with restrictor included in turbo kit. (Warranty VOID if not used)
- V-Band single entry turbine inlet flange
- 9 blade turbine wheel
- SiMo-nodular cast iron rear housing
- V-Band turbine outlet flange
- 4 x M14 x 1.5mm coolant ports (Must install water lines on opposite sides of the core)
- 7/16"-24 oil feed fitting with in-built restrictor
- 38mm bolt center turbo drain flange with M8 x 1.25mm thread size

Compressor Specifications:
Inducer:  58mm
Exducer:  71.40mm
Extended Tip:  74mm
A/R:  0.72
Compressor Inlet:  3" Slip fit
Compressor Outlet:  2" Slip fit

Turbine Specifications
Inducer:  60mm
Exducer:  55mm
A/R:  0.83
Turbine Inlet Flange: V-Band (AF8080-1016)
Turbine Outlet Flange:  V-Band (AF8080-1000)

Wastegate
External wastegate
